H-Series Induced Draft Natural Gas Heater 135K BTU
H-Series Induced Draft Natural Gas Heater 135K BTU is backordered and will ship as soon as it is back in stock.
Description
Description

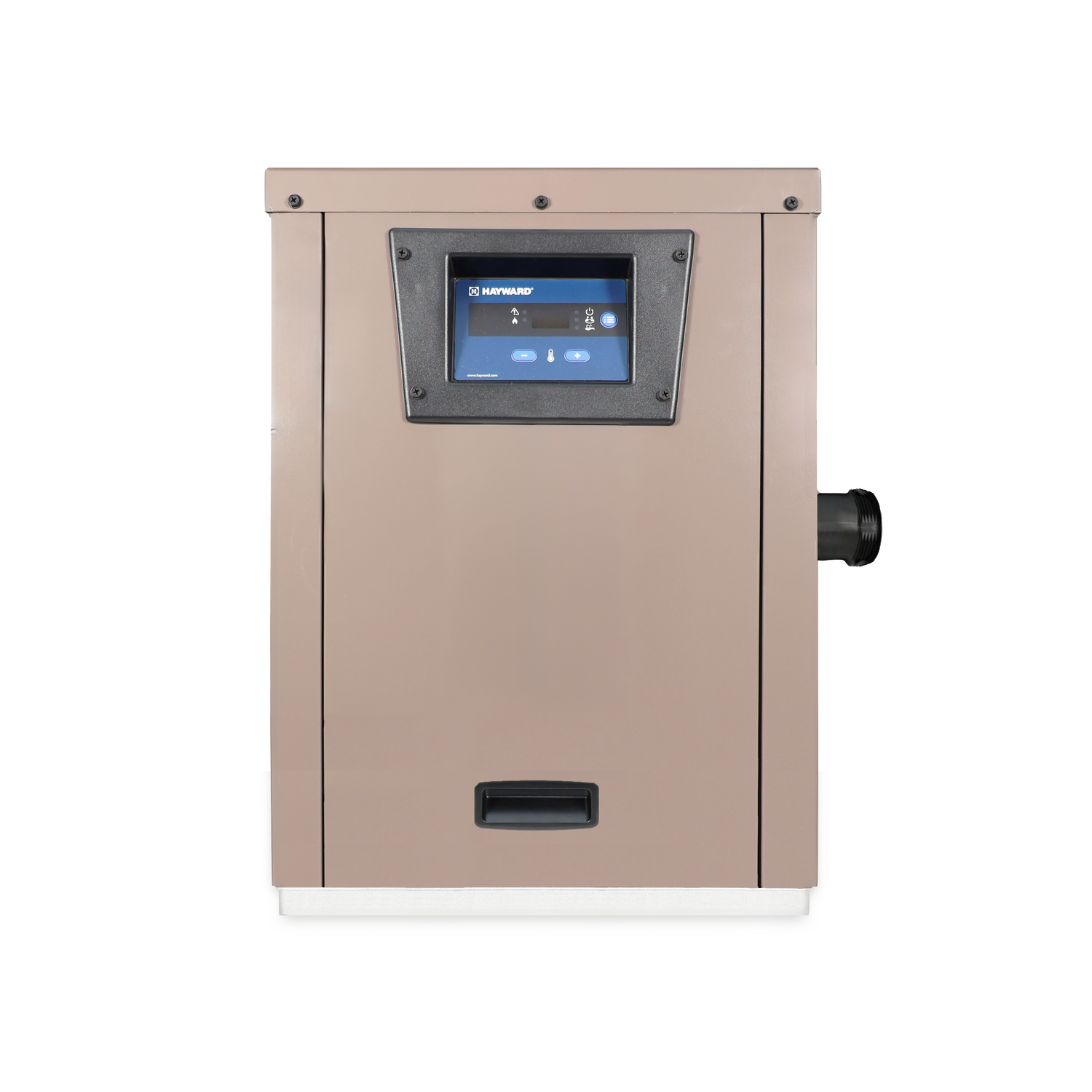

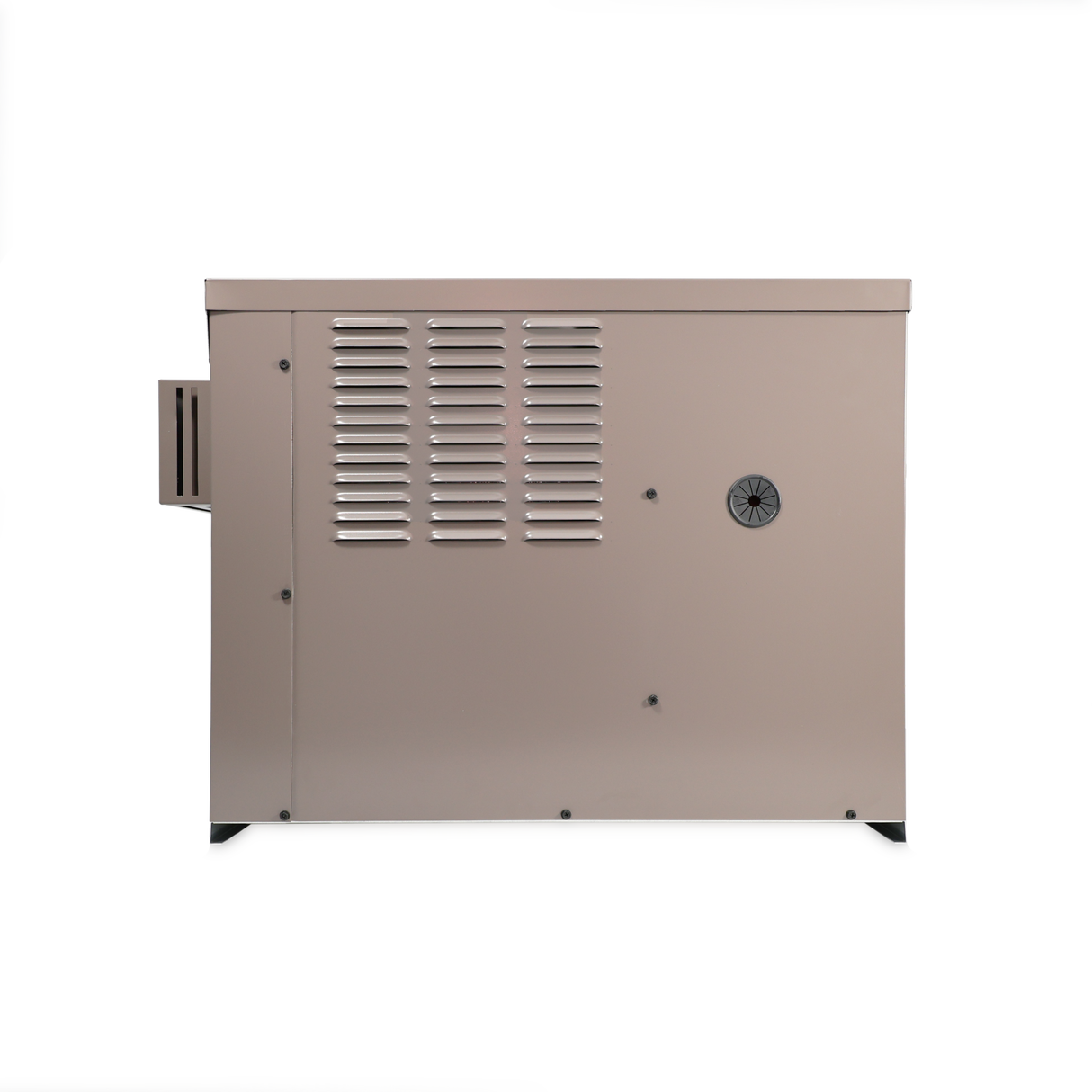

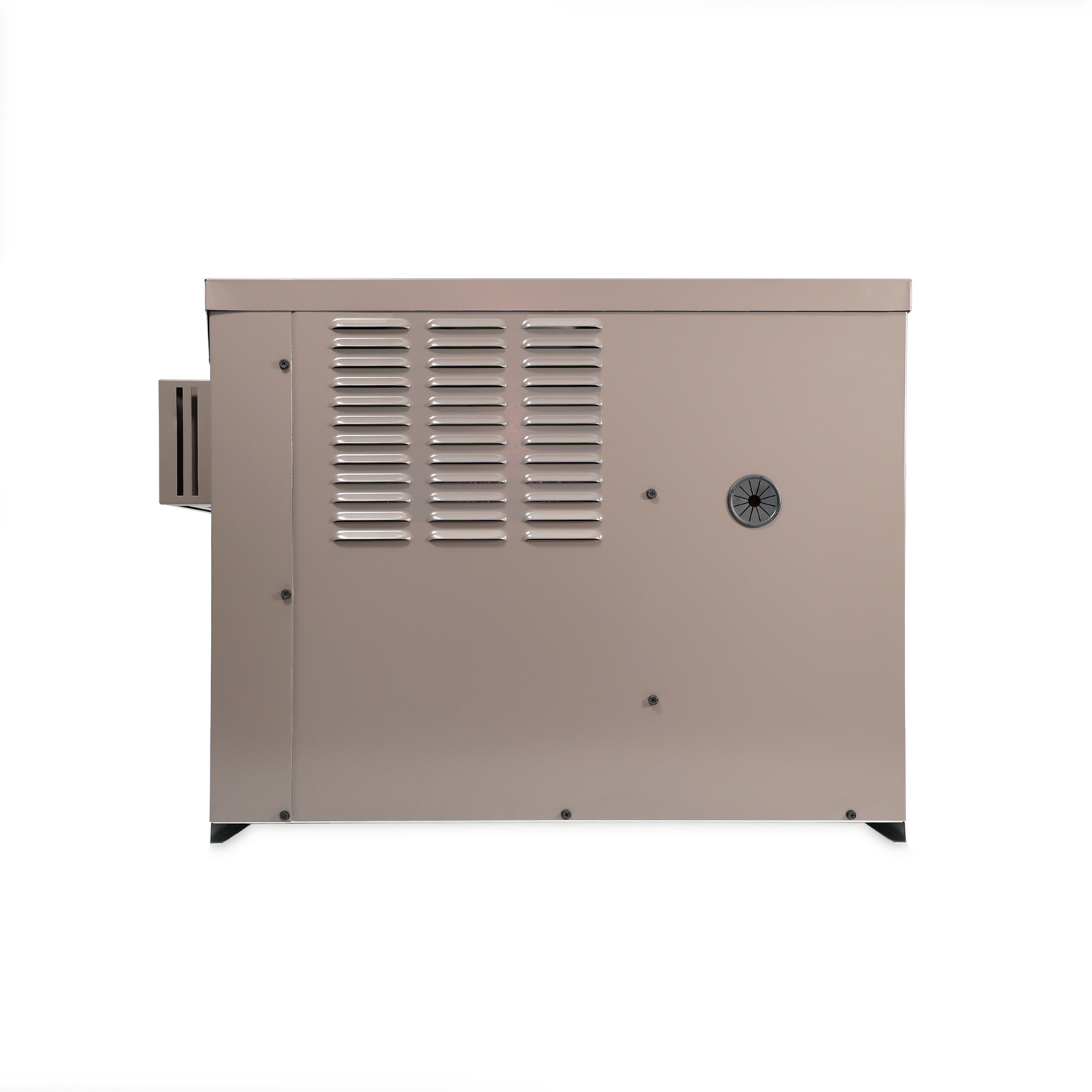

H-Series Induced Draft Natural Gas Heater 135K BTU
Features
The H-Series 135,000 BTU heater for above-ground pools and spas combines leading technology with ease of operation and superior performance. Featuring a standard cupro nickel heat exchanger and an energy-efficient combustion chamber, the Hayward heater provides 135,000 BTU input. A forced-draft design makes this heater completely impervious to any high wind situations. The patented polymer header design provides superior hydraulic performance. And a simple plug-in 120 volt electric cord is provided for simple installation.
Features and Benefits
- 135,000 BTU input for above-ground pools and spas
- Standard Cupro nickel heat exchanger for greater durability in high flow or occasionally aggressive water chemistry conditions
- Electronic thermostat with easy to read LED digital display of temperature and diagnostics
- Forced draft combustion eliminates all outside weather variables such as high-wind conditions
- Meets the South Coast Air Quality Management District (SCAQMD Rule 1146.2) Low NOx emissions standards in all Low NOx areas that apply the SCAQMD standard
- Plug-in 120 volt electric cord (3 ft.) for easy installation
| Active Defrost | No |
|---|---|
| Boost Mode | No |
| Brand | Hayward |
| Channel | Expert Line |
| Circuit Amps | 5.5 |
| Compressor Speed | N/A |
| Cooling Capability | No |
| Fuel Type | Natural Gas (NA) |
| GTIN | 610377360463 |
| Heating Capacity (BTU/hr) | 135,000 |
| Hertz - Heaters | 60 Hz |
| Kilowatts | 40 kW |
| Warranty - Labor | 1-year |
| Low Ambient Operation | Yes |
| Master Carton Qty | 1 |
| Maximum Breaker Size (Amps) | 15 |
| Minimum Operating Temperature | 40 °F |
| Pallet Qty | 1 |
| Warranty - Parts | 2-year |
| Phase - Heaters | 1 |
| Pool Type | Above Ground |
| Product Dimensions | 22.6 " x 21.4 " x 30.3 " |
| Product Height | 22.6 in |
| Product Length | 30.3 in |
| Product Weight | 100 lb |
| Product Width | 21.4 in |
| Rear Clearance - Heaters | 6" |
| Refrigerant | Yes |
| Series Heaters | H-Series |
| Shipping Dimensions | 27.3 " x 25 " x 37 " |
| Shipping Weight | 117.5 lb |
| Side Clearance - Heaters | 12" |
| Silent Mode | No |
| Sub Brand | N/A |
| Voltage - Heaters | 120V |
