Description
Description

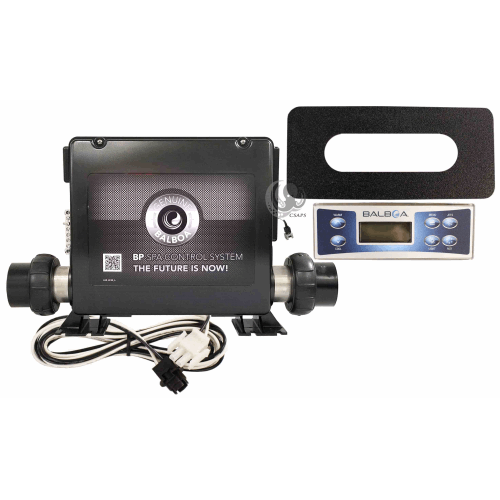

Balboa Retrofit Kit – G6405 (BP7 System + TP500 Topside)
Modern, reliable upgrade for older EL/GL/ML spa control systems.
The Balboa G6405 Retrofit Kit is a complete BP7‑based upgrade package designed to replace aging EL/GL control packs and ML‑series topsides. Featuring the powerful BP7 control system paired with the versatile TP500 topside, this kit delivers improved heating performance, modern M7 sensor technology, and a clean, intuitive user interface.
If your spa uses an ML400, ML700, ML900, or any EL/GL series pack, the G6405 provides a dependable, future‑proof replacement that restores full functionality and enhances long‑term reliability.
Balboa Retrofit kit with TP500 Keypad Features:
- 115/230v Pump 1 circuit
- 115/230v Pump 2 circuit
- 115/230v Blower circuit
- 115/230v Ozone circuit
- 115/230v Circ Pump circuit (30GPM minimum)
- 4.0kW heater
- 12v spa light circuit
- Patented M7™ technology
- Component cords included
- Control panel included
- US & Canadian safety approvals
| Topside Dimensions |
| 7 3/8 " wide x 3 1/4" tall |
The BP family of Hot Tub Control Systems were designed using Balboa's patented M7™ temperature and flow sensor technology and a new universal control platform. The systems have a plastic enclosure to eliminate water intrusion. Connectors are built onto the circuit board minimizing wires and simplifying service. The different models have controls for a single two-speed pump or an additional blower or pump. All models feature a convertible 115/230v power supply, a 1.4/4.0kW heater and can support mini, duplex, or standard digital control panels.
| Height | Width | Depth |
| 10-9/16" | 12-1/4" | 4-1/2" |
| Number Of Appliances | 2 |
| Manufacturer | Balboa Water Group |
| Model | BP7 |
| Supply Voltage | 115v, 230v |
| Heater Type | Fixed - Bottom |
| Heater Wattage | 5.5 kW |
| Topside Included | TP500 |
| Circ Pump Ready | Optional 115v/230v |
| Auxiliary Topside Ready | Yes |
| Fiber Optic | No |
| Accessory Ready | Yes |
| Wi-Fi Compatible | Yes |
| 50/60 HZ | 60Hz |
