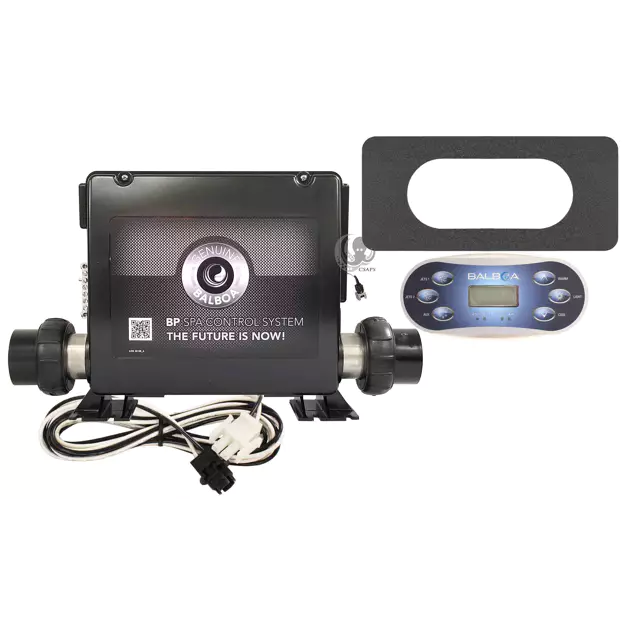

Balboa Retrofit Kit – G6506 (BP2000 System + TP600 Topside, 5.5 kW Heater)

High‑output retrofit kit for large spas and multi‑pump systems.

The Balboa G6506 Retrofit Kit is a complete BP2000‑based upgrade package engineered for spas that require higher power, expanded pump support, and advanced system flexibility. Featuring the BP2000 control system paired with the TP600 topside and a strong 5.5 kW heater, this kit delivers superior heating performance, modern M7 sensor technology, and a clean, intuitive user interface.

Designed to replace older EL/GL/ML control systems, the G6506 is ideal for larger spas, multi‑pump configurations, and installations needing a robust, future‑proof control platform.

Balboa 240v Retrofit kit with 5.5KW

This retrofit system can operate:
Pump 1: 1 or 2 speed (120v or 240v)
Pump 2: 1 or 2 speed (120v or 240v)
Pump 3: 1 speed or a Blower (120v or 240v)
Circ pump (optional) (120v or 240v)
Ozonator
Heater 5.5kw

* Minimum flow rate requirement is 23 GPM
*Power Requirement 240vac

Includes:
G5361 Control Box BP7
G8460 Topside TP600
12762 Overlay
15380 Adapter Plate
25098 Light Cord

Balboa
