Vertical Heater Titanium Lo-Flo 27-V310-5T-K

HydroQuip 27-V310-5T-K | 4.0kW Vertical Lo-Flo "Rite-Fit" Heater

The 27-V310-5T-K is an advanced replacement kit that solves the headache of finding a match for discontinued vertical units. It features a Titanium element, making it impervious to the corrosive effects of salt systems and poor water chemistry. Its vertical orientation and small footprint make it ideal for compact equipment bays where a traditional 15-inch heater won't fit.

Key Features

• Titanium Heating Element: Offers maximum longevity and superior resistance to corrosion and chemical pitting compared to standard Incoloy.

• Universal "Rite-Fit" Design: Engineered to replace a massive list of obsolete heaters from Therm Products, Aquatemp, and others.

• Safety Indicators: Features an external Heater "ON" indicator light and a Manual Reset High-Limit button for added safety and easy troubleshooting.

• Triple Pressure Taps: Includes three 1/8" NPT taps so you can position your pressure switch in the most convenient spot for your plumbing.

• Versatile Plumbing: Comes with 1-inch barb ports but includes adapters for 3/4-inch tubing, making it compatible with almost all low-flow circulation pump setups.

Technical Specifications

Replacement Compatibility

This unit is the primary replacement for dozens of discontinued part numbers, most notably:

• Therm Products: E2400-0115ET, E2400-0127ETX, E2400-0202ET.

• Discovery/Leisure Bay: 26-08145, 26-00257.

• Vita Spas: E2400-0127ETX.

Important Note: This heater does not include a pressure switch. Because low-flow systems are very sensitive to flow changes, it is highly recommended to install a new Tecmark 3902 pressure switch into one of the three available taps during installation.

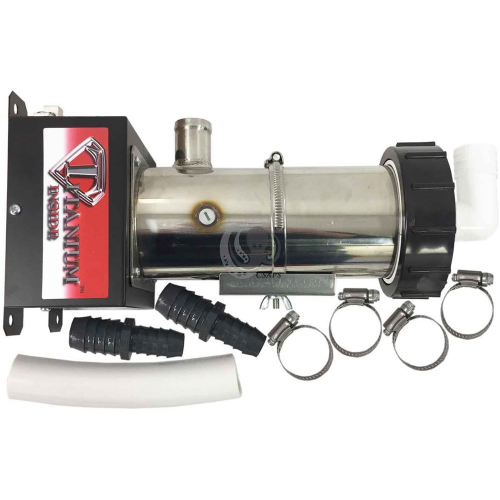

What's in the Box?

• Vertical Titanium Heater Assembly

• 60-inch AMP Power Cord

• 3/4" x 1" Barb Adapters

• Adjustable Sensor Cover Kit & Reversible Mounting Bracket
