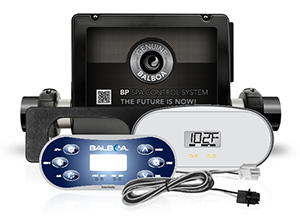

Balboa BP7 with Keypad TP600
Description
Description

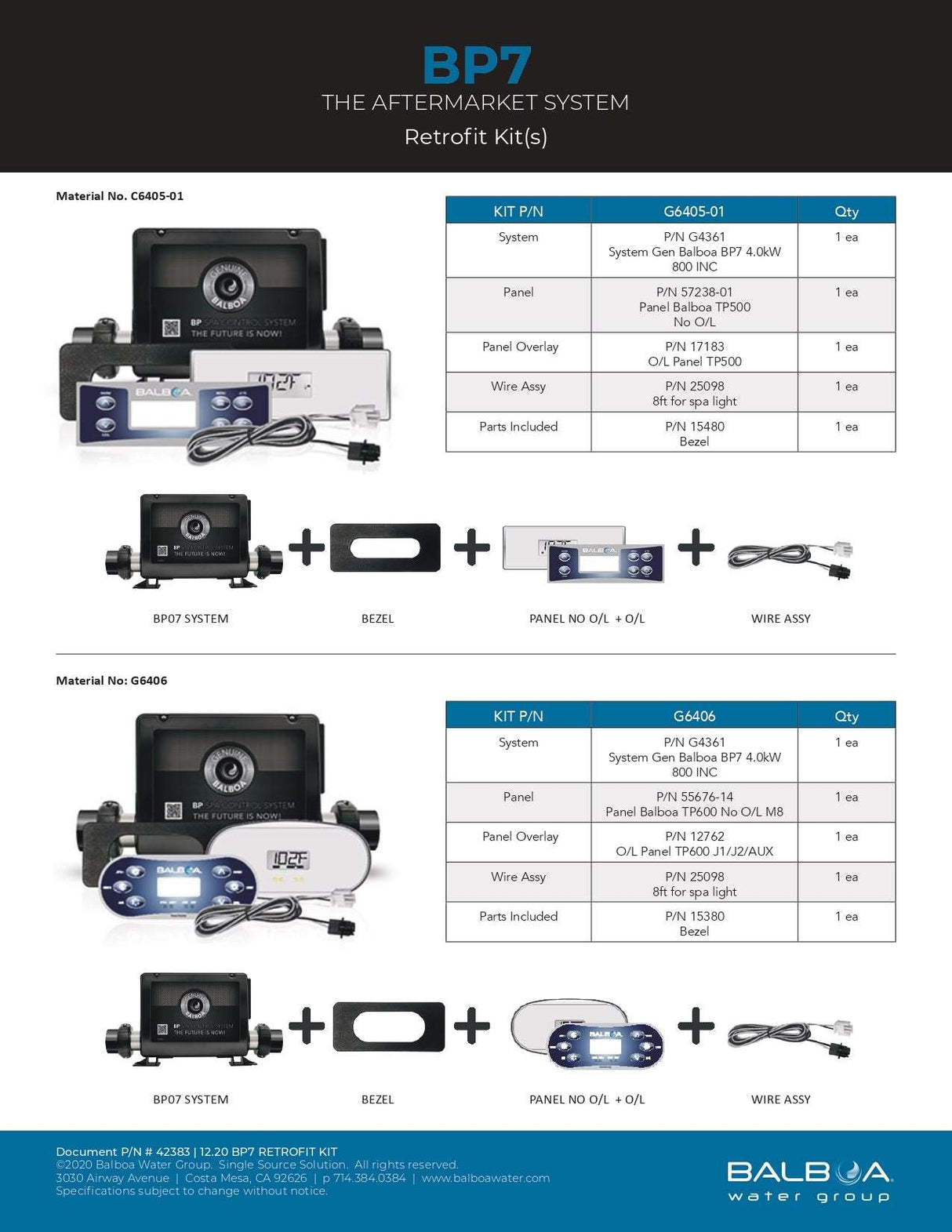

Balboa Retrofit kit with TP600 Keypad
- 115/230v Pump 1 circuit
- 115/230v Pump 2 circuit
- 115/230v Blower circuit
- 115/230v Ozone circuit
- 115/230v Circ Pump circuit (30GPM minimum)
- 1.4/5.5kW heater
- 12v spa light circuit
- Patented M7™ technology
- Component cords included
- Control panel included
- US & Canadian safety approvals
The BP family of Hot Tub Control Systems were designed using Balboa's patented M7™ temperature and flow sensor technology and a new universal control platform. The systems have a plastic enclosure to eliminate water intrusion. Connectors are built onto the circuit board minimizing wires and simplifying service. The different models have controls for a single two-speed pump or an additional blower or pump. All models feature a convertible 115/230v power supply, a 1.4/4.0kW heater and can support mini, duplex, or standard digital control panels.
| Height | Width | Depth |
| 10-9/16" | 12-1/4" | 4-1/2" |
| Number Of Appliances | 2 |
| Manufacturer | Balboa Water Group |
| Model | BP7 |
| Supply Voltage | 115v, 230v |
| Heater Type | Fixed - Bottom |
| Heater Wattage | 1.0kW, 4.0kW |
| Topside Included | T600 |
| Circ Pump Ready | Optional 115v/230v |
| Auxiliary Topside Ready | Yes |
| Fiber Optic | No |
| Accessory Ready | Yes |
| Wi-Fi Compatible | Yes |
| 50/60 HZ | 60Hz |
