Balboa BP7 with Keypad TP500
Click to enlarge

Balboa BP7 with Keypad TP500 Balboa BP7 with Keypad TP500

$699.99

Balboa Retrofit kit with TP500 Keypad

Features:
  • 115/230v Pump 1 circuit
  • 115/230v Pump 2 circuit
  • 115/230v Blower circuit
  • 115/230v Ozone circuit
  • 115/230v Circ Pump circuit (30GPM minimum)
  • 1.4/5.5kW heater
  • 12v spa light circuit
  • Patented M7™ technology
  • Component cords included
  • Control panel included
  • US & Canadian safety approvals
Topside Dimensions
7 3/8 " wide x 3 1/4" tall

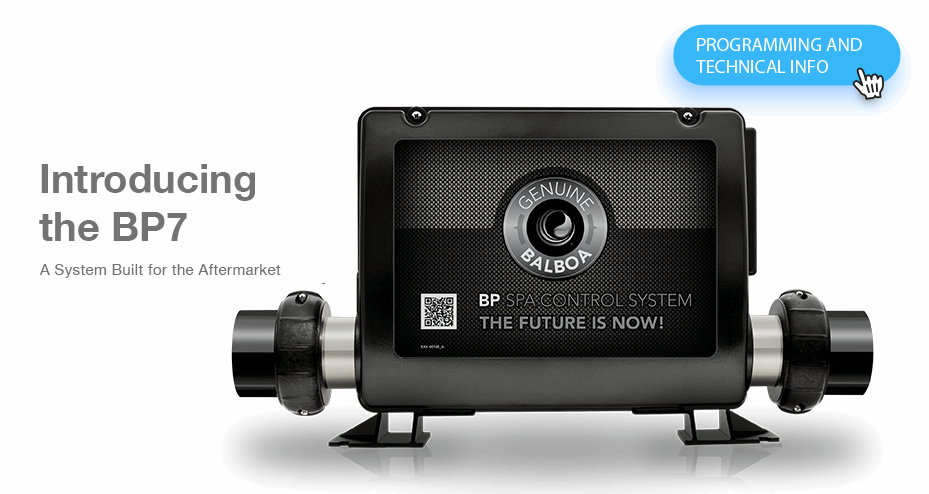

The BP family of Hot Tub Control Systems were designed using Balboa's patented M7™ temperature and flow sensor technology and a new universal control platform. The systems have a plastic enclosure to eliminate water intrusion. Connectors are built onto the circuit board minimizing wires and simplifying service. The different models have controls for a single two-speed pump or an additional blower or pump. All models feature a convertible 115/230v power supply, a 1.4/4.0kW heater and can support mini, duplex, or standard digital control panels.

Control Box Dimensions

      Height Width Depth
      10-9/16" 12-1/4" 4-1/2"


      Number Of Appliances 2
      Manufacturer Balboa Water Group
      Model BP7
      Supply Voltage 115v, 230v
      Heater Type Fixed - Bottom
      Heater Wattage 1.0kW, 4.0kW
      Topside Included TP500
      Circ Pump Ready Optional 115v/230v
      Auxiliary Topside Ready Yes
      Fiber Optic No
      Accessory Ready Yes
      Wi-Fi Compatible Yes
      50/60 HZ 60Hz

      Balboa Retrofit kit with TP500 Keypad

      Features:
      • 115/230v Pump 1 circuit
      • 115/230v Pump 2 circuit
      • 115/230v Blower circuit
      • 115/230v Ozone circuit
      • 115/230v Circ Pump circuit (30GPM minimum)
      • 1.4/5.5kW heater
      • 12v spa light circuit
      • Patented M7™ technology
      • Component cords included
      • Control panel included
      • US & Canadian safety approvals
      Topside Dimensions
      7 3/8 " wide x 3 1/4" tall


      The BP family of Hot Tub Control Systems were designed using Balboa's patented M7™ temperature and flow sensor technology and a new universal control platform. The systems have a plastic enclosure to eliminate water intrusion. Connectors are built onto the circuit board minimizing wires and simplifying service. The different models have controls for a single two-speed pump or an additional blower or pump. All models feature a convertible 115/230v power supply, a 1.4/4.0kW heater and can support mini, duplex, or standard digital control panels.

      Control Box Dimensions

          Height Width Depth
          10-9/16" 12-1/4" 4-1/2"


          Number Of Appliances 2
          Manufacturer Balboa Water Group
          Model BP7
          Supply Voltage 115v, 230v
          Heater Type Fixed - Bottom
          Heater Wattage 1.0kW, 4.0kW
          Topside Included TP500
          Circ Pump Ready Optional 115v/230v
          Auxiliary Topside Ready Yes
          Fiber Optic No
          Accessory Ready Yes
          Wi-Fi Compatible Yes
          50/60 HZ 60Hz
