Balboa Circuit Board Board 54638-01
Balboa Circuit Board Board 54638-01 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Description
Description

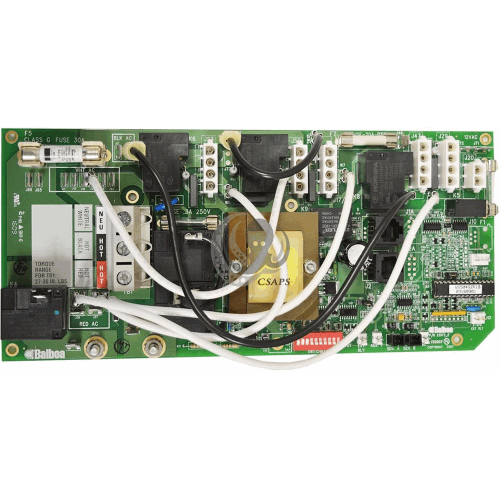

Balboa circuit board model VS504SZ with the Chip P/N VS504SZR1-. This circuit board is also a compatible replacement for some CS504SZ circuit boards, topside control compatibility must be confirmed.
Can control: Pump 1 - 2 Speeds, Pump 2 - 1Speed, Ozone, A/V, Standard 12V Light, (No Perimeter Light Option).
Compatible replacement option for the following part numbers*:
- Coleman 107-961, 107961, 107-068 or 107068 (Control System*),
- 55370-01 (Control System*),
- 55372,
- 33-0612-08CB,
- OP33-0612-08CB (Artesian*),
- Chip MX504SZ,
- Chip VS504SZR1A,
- 54637-01 (System model VSP-VS504SZ-DCAH),
- 55636 (CS504SZ System*),
- 55637 (CS504SZER1X*),
- 55257 System or 55258 Board (MX504SZR1A; *Must confirm topside panel compatibility),
- 33-54638-K, 55174, 55173-01 (*MVS504SZ)
* Only compatible with the Balboa VL700S topside control
