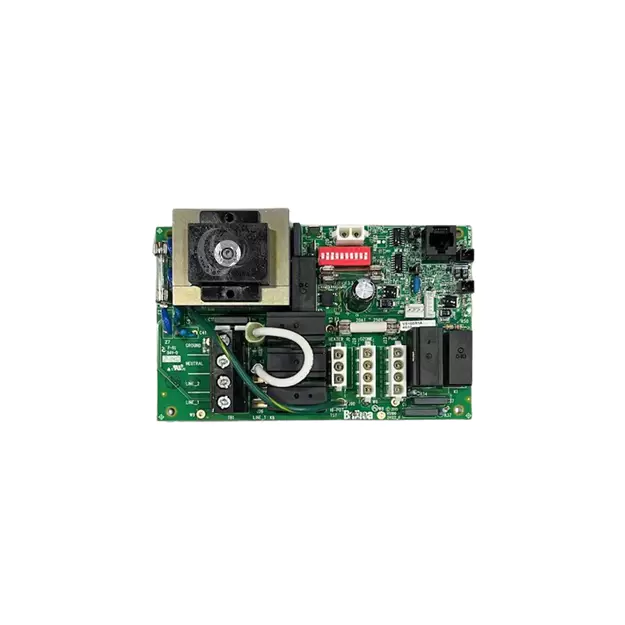

Balboa VS100 Circuit Board G1110

The G1110 Circuit Board is a reliable, high‑performance replacement board designed to restore full functionality to compatible spa and hot tub control systems. Engineered for stable operation, accurate temperature regulation, and long‑lasting durability, the G1110 board ensures smooth pump control, heater activation, and system safety features. Ideal for technicians and spa owners looking for a dependable OEM‑grade replacement that delivers consistent performance and easy installation

The Balboa VS100 Circuit Board G1110 is the replacement for the 56297 circuit board. This circuit board is only compatible with the standard four button Balboa VL200, VL240 or VL260 topside control panels that have the temperature up and down buttons on the right side of the topside.

Details:

• Balboa P/N: G1110
• Voltage: 115v / 230v
• Power Requirements: GFCI Protected Service, 3 Wire 115v, 4 Wire 230v
• Neutral Required: Yes
• Pumps: Can run 1 x 2 speed pump 115 volts only
• Heater: 1KW @ 115v, 4KW @ 230v
• Circuit Breaker Rating: 20A on 115v & 50A on 230v
• System Series: Balboa VS100
• Configuration: 1 Pump, Ozone, 12v Light

Important

This circuit board is not a direct replacement for the Dream Maker RS101, RS81 or Spaberry VEL100SB 56493. Do not purchase a replacement Balboa circuit board on appearance alone, a number of the Balboa circuit boards look the same but have different software or operating chips on them and they are not interchangeable.

Returns:

Hot Tub circuit boards are non-returnable items as they cannot be resold. All the replacement circuit boards we sell are factory-new, factory-tested and have never been installed before. For further information, please refer to our return policy. All circuit boards come with the original manufacturer's warranty.
