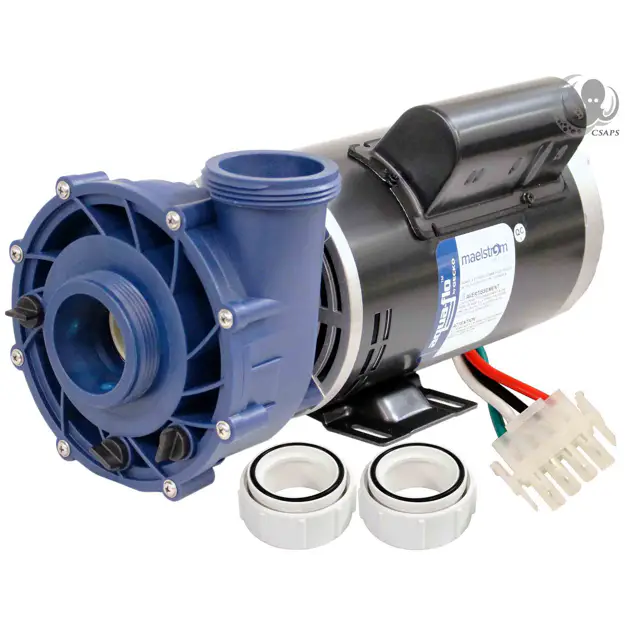

Gecko Maelstrom MS‑1‑V26‑3.0‑2‑101 Spa Pump (3.0 HP, 230V, 2‑Speed)

Ultra‑high‑output performance pump engineered for maximum jet power and reliable spa circulation.

The Maelstrom MS‑1‑V26‑3.0‑2‑101 is a heavy‑duty 230‑volt, 2‑speed spa pump designed to deliver exceptional water flow, intense jet pressure, and long‑term reliability. Built for high‑demand hydrotherapy systems, this 3.0 HP pump provides superior hydraulic performance while maintaining smooth, energy‑efficient filtration on low speed.

With its side‑discharge wet end, 3.0 HP motor, and standard 2" unions, the MS‑1‑V26‑3.0‑2‑101 installs easily and delivers vigorous jet action for large spas, multi‑jet therapy seats, and premium hot tub configurations.

Key Features

• 3.0 HP Ultra‑High‑Performance Motor Delivers intense jet pressure and exceptional water movement for large, high‑demand spas.

• 2‑Speed Operation Low speed for filtration, high speed for jet action.

• Side‑Discharge Wet End Ideal for spas requiring horizontal plumbing alignment.

• Energy‑Efficient 48‑Frame Design Compact, quiet, and reliable for long‑term use.

• Standard 2" Union Connections Includes unions for fast installation and service.

• Heavy‑Duty Construction Built with corrosion‑resistant materials for demanding spa environments.

Description: Pump, Maelstrom MS-1-V26-3.0-2-101
HP: 2.5
Voltage: 220-240 V
Type: 2 Speed
Amp Draw: 12/3.5

*These pumps are “derated” pumps.
This means it is a 12 amp “Rated Motor” on which Gecko manufactured a 101mm impeller to reduce the flow and the Amp drawn to 8.2 amp/3.1 amp.”
The sticker on the new motor will still show the 12/3.5 amp rating because that is what the motor is rated for.

HMAX: 55.2 / 12ft
QMAX: 257 / 127 USGPM
Frame Size: 56
Discharge: Side
Suction Size: 2" Union
Discharge Size: 2" Union
Unions Included: Yes
Gecko

Alternate: 3720821-1D
